Sheet Metal Fabrication

Our state-of-the-art equipment allows us to provide you with high quality products while meeting your demands of either pilot build, production, or mass production runs! We fabricate a wide range of high quality products for the Commercial, Medical and High Technology industries. We work with a wide range of materials ranging from aluminum, steel, and stainless steel! Our large range of metal fabrication equipment, machines, and talented staff under one roof ensures that you have come to the right place for your precision metal fabrication needs.

Primary Process Equipment

Amada RG-M2 1003 Press Break

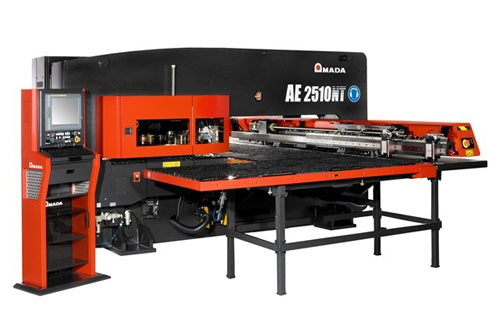

Amada AE 2510NT Turret Punch Press

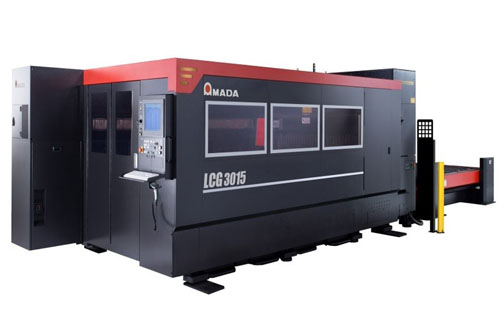

Amada LCG3015 Laser Cutting System

110-ton capacity

122.05" maximum bend length

100.39" distance between side plate

14.57" open height

3.97" stroke length

Press Capacity (kN):               200

Tool Storage:                        51 stations

Max. Worksheet Size (mm):    1270 X 2500

X-Axis Travel (mm):               2500

Y-Axis Travel (mm):               1270

Punching Accuracy:               +0.1mm

Combined Max. Feed Speed:   100 m/min

Laser Power:    3500W

Laser Source:   CO2

Series:             I-C

Drive System:   X/Y - Direct drive helical rack Z - Ball screw

Max. Axis Speed (simultaneous): 170m/min

Working Range (XxYxZ): 3070 x 1550 x 100

Max. Material Thickness:

20mm (Mild Steel) | 10mm (Stainless Steel) | 8mm (Aluminum)

Secondary Process Equipment

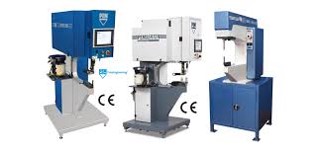

PEM Insert Installers

Time Saver
